Nails are often preferred for structural joining, including framing walls, because they are more flexible under pressure, whereas screws can snap.

Is it OK to frame with screws?

Our inspectors have seen a disturbing trend of late: people using wood or deck screws when building structural elements. This means ordinary wood screws cannot be used to attach rafters to top plates, or joists to beams.

What screws should I use for framing?

The most common screw for joining two-by-fours is hardened steel, structural, No. 9, 2 1/2 inches long with a Phillips head. Other screw types appropriate for studs are specialized and may be harder to find and more expensive. It's important that the screw is designated as a structural screw or a deck screw.

Do nails hold better than screws?

When it's a project where weight or gravity bears down on the fastener, a screw holds position better than a nail. If the fastener will bear more side-to-side movement or needs some give, a nail is the better choice.

What is the best size nail for framing?

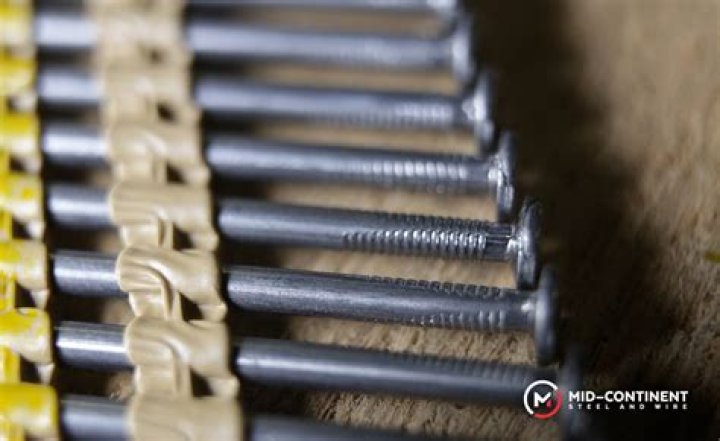

Most contractors agree that you want to use 16d nails, also referred to as 16-penny nails. These are the perfect length at 3 ½ inches. There are two distinct varieties of these 16-penny nails: common nails and sinker nails.

The Writing on the Walls!!! House Build Update- 6/12/22

What kind of nails do you use for framing?

The best nails for framing are 3 1/2 inches long. These are called 16-d, or "16-penny," nails.

Why don't you use screws for framing?

Nails are often preferred for structural joining, including framing walls, because they are more flexible under pressure, whereas screws can snap.

How far should a screw go into a stud?

The ideal depth a screw should go into a stud is 3/4 of the length of the screw's bottom part. Experts say that half of the length is alright. You'll have to consider any material between the screw and the stud.

Can I use 16d nails for joist hangers?

For interior framing, that means using only the thicker 10d, 12d or 16d common nails (rather than skinnier sinker nails) to fasten a joist hanger's face flange to wall ledgers, headers and beams. Outdoors use 16d double-dipped galvanized nails (or stainless steel when called for) for installing hangers.

How much weight can a 2x4 stud support?

Despite that fact, most people know surprisingly little about how much weight a 2×4 can hold. When standing vertically, such as when it functions as a stud, a 2×4 can hold about 1,000 pounds. A 2×4 can hold up to 40 pounds or 300 pounds when laying on its edge without sagging when laying horizontally.

What does the D mean in nails?

Nails. For historical reasons, nails are sold both by a number followed by d and (less confusingly) by length. The “d” stands for penny, so 8d refers to an 8-penny nail, 16d to a 16-penny nail and so on. It's a way to indicate nail length, as you can see in the table below.

Are 3 inch nails good for framing?

Either choice you make, using 16d framing nails ensures a solid structure that meets local building codes. A 4-inch, 20d nail is better for 2×6 lumber but could cause smaller 2×4 lumber to split. Use a 3-inch, 10d nail in 2×4 framing, and you won't get less strength and be structurally inadequate.

How many nails are needed to frame a house?

You need two 16d nails if you're nailing through a plate into the end of the stud, or four 8d nails if you're toenailing. When you nail plywood or oriented strand board (OSB) roof sheathing, you need a nail every 6 in. along the edge of the sheathing and every 12 in. elsewhere.

What size nails are used to build a house?

The ideal length of nails for framing a building

The nail lengths or nail sizes that are the most common include 6d, 8d, 10d, or 16d.

Should I use galvanized nails for framing?

You want 3 1/4" full-head nails f0r most framing. If you are using pt wood you need to use galvanized. Before using the gun see if it is set up for sequential firing or bump. if you have never used one you should start with it set for sequential firing.

When nailing 2x6 inch joists What nail should be used?

In a 2x6 joist I'd use a total of 8 8d or 10d nails, 4 per side, typically 8d in size or in some cases 10d - these are the most-commonly-used nail sizes when toe-nailing 2x framing lumber as unless you're using box nails, larger nails tend to split the lumber, especially when, as in your photo, they're nailed too close ...

Are construction screws stronger than nails?

Screws have more holding power than nails and have a high failure strength that makes them well suited for high-stress structural projects. They're also easier to remove.

Is it OK to use screws on joist hangers?

While structural nails are typically used to fasten joist hangers, you may be wondering if screws can be used instead. You can use screws explicitly made for joist hangers. However, avoid using any other types of screws as they cannot support joist loads and are not designed to withstand shear force.

Do you use joist hangers on both ends?

Joist hangers are preferable to both toe-nailing and end-nailing. Joist hangers provide greater shear force support to joists, as the hanger allows for both face nailing and toe-nailing into ledger boards and rim joists.
