The 0.10 friction rate is the most commonly used quick duct design friction rate for sizing ducts.

What is friction rate in HVAC?

The friction rate tells us how much friction our ductwork should produce, per 100', so that we consume the rest of our available static pressure (ASP) budget with our specific layout.

What is friction per 100 feet of duct?

C A friction loss per unit length is selected for all duct; this value is usually in the range of 0.05 to 0.2 inches wg per 100 feet of duct length.

What is friction loss in duct?

Air Ducts are passages for air to travel within your home. The loss in pressure of the flow that occurs due to the air viscosity in the surface of the duct is termed as friction loss.

What is the friction rate for flex duct?

The 0.10 friction rate is the most commonly used quick duct design friction rate for sizing ducts.

Basic Duct Sizing & Friction Rate Calculations

Why is friction loss important?

Friction loss affects flow rate and fluid pressure within the piping system and must be considered during system design. Fittings, bends, valves, expansion joints and any change in direction can also create friction that causes pressure loss and can result in operational challenges.

Is friction rate the same as static pressure?

The higher the friction rate, the better

Now, friction rate is based on available static pressure. It's a number that tells you how much pressure drop you're allowed to use per 100 feet of effective length in the duct system.

What is friction method?

Friction. Method. To find the coefficients of friction between to materials, an experiment needs to be performed. Finding the coefficient of static friction is the natural first step. Once this coefficient is found, the more complicated problem of finding the coefficient of kinetic friction will not be so cumbersome.

What is ASP in HVAC?

Finding the available static pressure (ASP)

Those things have to go into the duct system and generally have known pressure drops. We subtract them from the total external static pressure number (typically 0.5 iwc). What's left is the available static pressure (ASP) for the ducts and fittings.

What is friction chart?

The friction factor or Moody chart is the plot of the relative roughness (e/D) of a pipe against the Reynold's number. The blue lines plot the friction factor for flow in the wholly turbulent region of the chart, while the straight black line plots the friction factor for flow in the wholly laminar region of the chart.

What size duct do I need for a 12x12 room?

A 12×12 foot room will need a 4×8 inch supply duct to get an adequate CFM rate, which is about 144 CFM.

How do you calculate CFM for duct size?

Duct CFM Calculation Formula

  1. Room CFM = (Room load/Whole house load) ✕ Equipment CFM.
  2. 24,000 BTUs ÷ 12,000 BTUs in 1 ton = 2 tons ✕ 400 CFM per ton = 800 CFM.
  3. Room A = (2,000 BTUs ÷ 24,000 BTUs) ✕ 800 CFM.
  4. Room A = 66.67 CFM.

What should duct static pressure be?

The ideal static pressure is 0.5 inches for the lowest noise and to properly take care of the equipment. We at Fire & Ice use the term “static pressure” quite a bit when talking about ducts, filters, and other HVAC items. The wrong static pressure can strain your system and even shut it down.

How do you calculate pressure loss in ductwork?

How to Calculate Pressure Loss Through a Duct

  1. ρ, the density of the fluid.
  2. D, the hydraulic diameter of the duct D = 2 a b / (a + b).
  3. ⟨v⟩, the mean flow velocity, experimentally measured as the volumetric flow rate Q per unit cross-sectional wetted area.
  4. fD, the Darcy friction factor (also called flow coefficient λ).

How do you calculate duct Tel?

When you add up the effective lengths of all the fittings and then add that number to the length of the straight sections in the most restrictive runs in the return and supply ducts, you find the total effective length (TEL).

How friction is increased?

Friction can be increased by: making the surfaces rough. pressing the surfaces harder against each other (by increasing normal force).

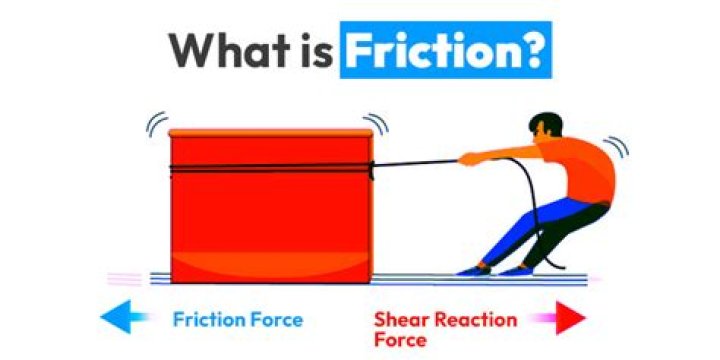

What are the 4 types of friction?

Friction is defined as the force that opposes the motion of a solid object over another. There are mainly four types of friction: static friction, sliding friction, rolling friction, and fluid friction.

What causes friction?

Friction is caused due to the irregularities on the two surfaces in contact. Even the smoothest surfaces have minute irregularities in them and these irregularities of the two surfaces interlock into each other and create friction. Larger the irregularities more is the friction.

What is duct Tel?

The total effective length (TEL) is the sum of all those fitting equivalent lengths plus the lengths of straight duct. If you're doing it by hand, you have to go through the process for every single duct run.

What is static pressure formula?

The physical formula for static pressure is P = F/A. Where P is the pressure; F is the force exerted by the liquid, and A is the area over which the force is exerted.

What is duct design?

A duct system is also called ductwork. Planning (laying out), sizing, optimizing, detailing, and finding the pressure losses through a duct system is called duct design.

What is friction loss formula?

In mechanical systems such as internal combustion engines, the term refers to the power lost by overcoming friction between two moving surfaces. friction loss = friction loss coefficient * ( flow rate / 100) 2 * hose length /100. FL = C* (Q/100)2 *L/100.

How does friction affect pressure?

When friction is added, the pressure gradient and Coriolis terms must counteract it. Since friction acts opposite the direction of flow, the velocity u must have a component toward lower pressure when friction is present.

What causes friction loss?

The head, pressure, or energy (they are the same) lost by water flowing in a pipe or channel as a result of turbulence caused by the velocity of the flowing water and the roughness of the pipe, channel walls, or restrictions caused by fittings.
