K-factor is a weighting of the harmonic load currents according to their effects on transformer heating, as derived from ANSI/IEEE C57. 110. The higher the K-factor, the greater the harmonic heating effects. There are many different loads such as computers, solid state devices and motors which cause a non linear load.
What is K rating of transformer?
A K-factor rated transformer is designed to handle a degree of harmonic load currents without overheating. The K-rating number of the transformer (1, 4, 9, 13, 20) is in indication of the amount of harmonic current the transformer is capable of handling.What is K in transformer formula?
K-Factor is a ratio between the additional losses due to harmonics and the eddy losses at 60 Hz. Note that K-Factor transformers do not eliminate harmonic distortion; they withstand the non-linear load condition without overheating.What is current K factor?
The K-Factor indicates the amount of heat produced by sinusoidal currents compared with the same rms value of a pure sine current. The K-Factor, which provides a measurement of the thermal effects on transformers, is defined by the ANSI/IEEE C57. 110 standard.Are all transformers K-rated?
K factor is defined as a ratio between the additional losses due to harmonics and the eddy current losses at 60Hz. It is used to specify transformers for non-linear loads. Transformers with a rated K factor of 4, 9, 13, 20 are available.K Factors and Their Applications
What is K 4 rated transformer?
The K4 Transformer is used in applications in which a major portion of the load is non-linear devices, and the 24 hour average load duty cycle is 80% or higher. The K13 rated Transformer is used where the majority of the load is non-linear, and the 24 hour average load duty cycle is 95% or higher.What is a k7 transformer?
K-rated transformers are manufactured with heavier gauge copper and a double sized neutral conductor and have higher magnetic to resistive properties than a standard transformer which enables them to handle the heat generated by harmonic currents.What is K rated isolation transformer?
What is a K-rated transformer? A K-rated transformer is one which is used to deal with harmonic generating loads. Harmonics generate additional heat in the transformer and cause non-K-rated transformers to overheat possibly causing a fire, also reducing the life of the transformer.What is the turn ratio of transformer?

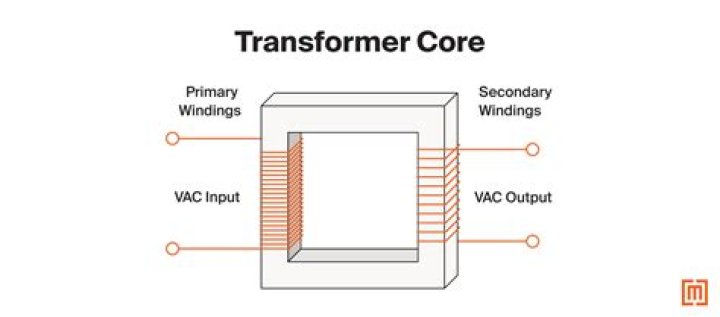

The transformer turns ratio is the number of turns of the primary winding divided by the number of turns of the secondary coil. The transformer turns ratio provides the expected operation of the transformer and the corresponding voltage required on the secondary winding.What is derating factor in transformer?
This factor is a function of the distribution of the current harmonic content. This way is defined the loss factor on a distribution transformer due to the current harmonics. For this standard the derating is obtained with the calculation of maximum current allowed in the distribution transformer.What is a harmonic current?
Harmonic currents are caused by non-linear loads connected to the distribution system. A load is said to be non-linear when the current it draws does not have the same waveform as the supply voltage.What is non linear load?
A Non Linear Load [NLL] is a load with current consuming characteristics that do not follow (mimic) the same fundamental shape as the applied voltage waveform. Technically, this situation is examined by conducting a voltage and current harmonic analysis.What is a harmonic mitigating transformer?
Harmonic Mitigating Transformers, or HMT's, are specifically designed to minimize the voltage distortion and power losses that result from the harmonics generated by non-linear loads such as personal computers.How do you calculate K factor?
K factor is a ratio between the distance from the neutral bend line to the inside bend radius and the material thickness. K factor uses the formula K factor = δ/T.What are triple harmonics?
Triplen harmonics have frequencies in odd multiples of 3, i.e., 3 harmonic (150 Hz), 9th harmonic (450 Hz), 15. harmonic (750 Hz) and so on. These harmonics have some peculiar characteristics, which make them very difficult to handle and mitigate.What is linear load and non linear load?
Linear load is electrical load consuming AC power both real power and apparent power with a power factor of 1. Example of linear load is incandescent lamp. Non-linear load generates harmonic currents in addition to the original AC current and its power factor is less than 1.What is TTR test of transformer?
Transformer Turns Ratio (TTR) testing is one of the most common ways of assessing the condition of a transformer's windings and core. Throughout the life of a transformer, TTR results are compared against the nameplate ratings to reveal insulation deterioration, shorted turns, core heating or other abnormalities.What turn ratio means?
Definition of turn ratio: the ratio of the number of turns in one of two inductively coupled circuits to the number in the other.
