If your refrigerator stops producing cold air, there may be something wrong with the PTC (positive temperature coefficient) relay, also known as the start relay. The PTC relay starts the compressor inside the fridge to make cold air so your food stays cool.
What is a potential relay?
Potential or “voltage” relays are used with single-phase capacitor-start/capacitor-run motors, which need relatively high starting torque. Their main function is to assist in starting the motor. Potential starting relays consist of a high resistance coil and a set of normally closed contacts.
What is a PTC start assist?
The PTC Compressor Start Assist is designed to boost compressor starting torque. DESCRIPTION AND USAGE. The Positive Temperature Coefficient (PTC) thermistor causes the compressor “run” capacitor to be bypassed for a brief period of time at start up, creating extra starting torque in the compressor motor.
How does a refrigerator relay work?
The overload relay is a protection device used in the compressor circuit on your refrigerator. Power is applied to the compressor motor windings through the overload device, and the relay is used to add the start winding in the circuit until the compressor is at running speed.
How can I test PTC?
Testing a PTC thermistor follows all the same steps as a NTC thermistor. First check, with an ohmmeter, the thermistor without any heat applied. With a PTC thermistor at room temperature or below, the thermistor should measure a very low resistance. Now apply heat, just like before, to the thermistor’s body.
How does a PTC work?
PTC thermistors are temperature-dependent resistors based on special semiconductor ceramics with a high positive temperature coefficient (PTC). They exhibit relatively low resistance values at room temperature. When a current flows through a PTC the heat generated raises the temperature of the PTC.
What are 3 types of start relays?
Several types of starting relays are used to assist in the starting of single-phase compressors. These include the current relay, potential relay, and PTC (positive temperature coefficient) relay. Each performs the same function but in a different manner.
What is the difference between a relay and a potential relay?
Potential relays (relays are used, as a rule, high-torque capacitor-start the engines. They slightly resemble the current relay. However, these relay is based on the increase in voltage. The increase comes as a device approaches and reaches its rated speed.
What is the function of PTC relay?
A PTC relay means positive temperature coefficient is a starting device for refrigerator compressors. It is responsible for providing power to the start winding for a brief moment to help start the cooling compressor motor.
What causes a refrigerator relay to go bad?
Electrical Surge Refrigerator relays protect the fridge from electrical damage. An electrical surge can be one reason that a relay will fail and overload. When the resistance of the wire impedes the electrical current, the wires can become hot and begin to melt. An electrical surge can cause this to occur.
How do you test a relay?
The only tool required to check a relay is a multimeter. With the relay removed from the fuse box, the multimeter set to measure DC voltage and the switch in the cab activated, first check to see if there are 12 volts at the 85 position in the fuse box where the relay plugs in (or wherever the relay is located).
What is PTC used for?
The ability to taste PTC is often treated as a dominant genetic trait, although inheritance and expression of this trait are somewhat more complex. PTC also inhibits melanogenesis and is used to grow transparent fish.
What is PTC protection?
A Positive Temperature Coefficient or PTC Device is a resettable overcurrent circuit protection device. The PTC Device changes or trips from a low resistance state to a high resistance state in response to an overcurrent condition. …
What is the principle of relay?
Relay works on the principle of electromagnetic induction. When the electromagnet is applied with some current it induces a magnetic field around it. Above image shows working of the relay . A switch is used to apply DC current to the load.
Where is relay used?
Relays are used wherever it is necessary to control a high power or high voltage circuit with a low power circuit, especially when galvanic isolation is desirable.
What is the purpose of the starting relay?
A starter relay acts as an electrical circuit completer or circuit breaker in between the vehicle’s battery and the starter motor. It helps to boost the battery’s current so that not as great a current is required at ignition. The starter relay is sometimes, but not always, used in addition to a starter solenoid.
What does a current relay do?
A current relay is a type of electromagnetic switch used as part of the control systems for electrical equipment. These relays are commonly used as sensors (current sensor/monitoring relays) to monitor current flow within industrial and other safety-sensitive equipment.
What is relay and its types?
Relays are electrically operated switches. They are used to control a circuit by a separate low-power signal or to control several circuits with one signal. The three main types of relays are electromechanical, solid-state, and reed. This overload protection relay reacts to overheating.
How do you check a relay?
How do you bypass a refrigerator relay?
Use a flathead screwdriver to press down on the space between the relay and its casing. Then, press on the relay itself and pull it out to remove it from the refrigerator. Slide the wire from the relay so it’s accessible.
Can you bypass a PTC relay?
You’ll need to remove the metal connecter attaching it to the relay system first and then use pliers to strip some of the wire (no more than ¼ inch) on either side. Using electrical tape, connect both ends of the wire back to the relay housing so it completely bypasses the missing relay and closes the circuit.
How do PTC relays work?
A PTC relay uses a positive temperature coefficient thermistor to remove the start winding and/or start capacitor from the circuit. These compressors are designed to operate with a run capacitor in the motor circuit to give them better running efficiency.
What is an overload relay?
Overload relays protect the motor, motor branch circuit, and motor branch circuit components from excessive heat from the overload condition. Overload relays are part of the motor starter (assembly of contactor plus overload relay). They protect the motor by monitoring the current flowing in the circuit.
Can you overload your freezer?
Overfilling the Freezer It’s true that a full freezer works more efficiently than an empty one. But there can be too much of a good thing. Overfilling the freezer can block air vents, restrict the flow of cold air, and overtax your refrigerator’s condenser, which could lead to a burn out.
Which is an example of a PTC relay?
E.g Example: If you start your fridge and then you switch off and then start it, you will note that the compressor does not start again because of the heat thermistor or relay. And when you switch off again and try after 5 to 10 minutes you will find the fridge compressor start normally.
What kind of motor does a PTC relay compressor use?
Domestic compressors have multiple designs depending on capacity which changes their design type. A PTC relay is on the smaller class and would typically be an RSIR motor or resistance start, induction run. Typically the start winding has a higher reading the run winding.
What does PTC stand for in a refrigerator?
PTC means a positive temperature coefficient thermistor however we can call starting relay or compressor starting relay in simple words. How a Refrigerator PTC Relay Working and Function

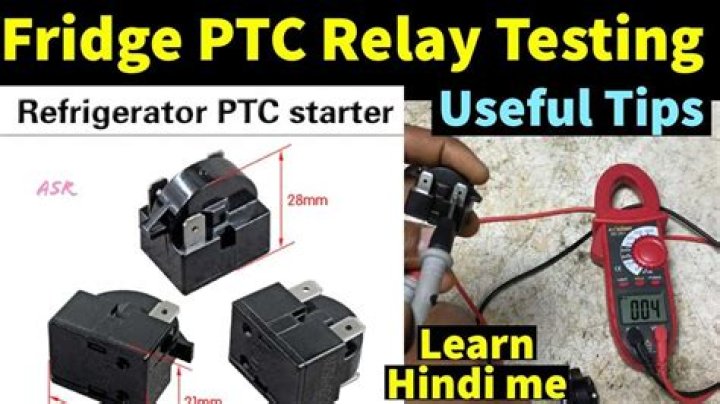

Do you need to test a refrigerator PTC relay?
Luckily, the PTC relay is something you can easily check and replace yourself if you need to. After you access the relay and compressor on your fridge, use a multimeter to test the ports to make sure it has a low resistance. If the relay still works, you may also need to check the compressor to make sure it’s still functioning.
