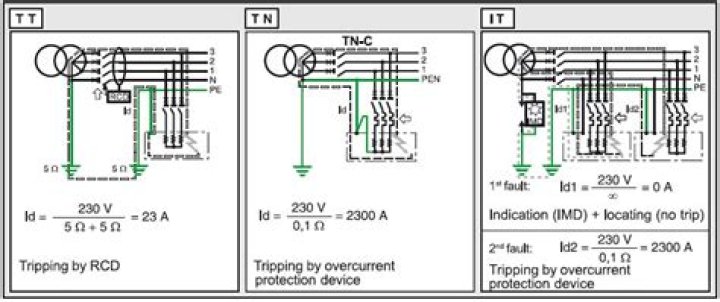

1) TT: transformer neutral earthed and frame earthed. 2) TN: transformer neutral earthed, frame connected to neutral. 3) IT: unearthed transformer neutral, earthed frame.

What does TN system mean?

TN systems (exposed conductive parts connected to the neutral) IT system (isolated or impedance-earthed neutral)

What does T stand for in a TN system?

TN-C-S ; TN-S ; TT. The T stands for 'TERRA' which is Latin for Earth. The N means that the connection to earth is via the supply Network. The C stands for 'COMBINED' in relation to the neutral and the earth. The S stands for 'SEPARATE' in relation to the neutral and the earth.

What is TT system in electrical?

The TT method refers to a protective system that directly grounds the metal housing of an electrical device, which is called a protective earthing system, also called a TT system.

What is the difference between TT and TNS system?

TT : the source and the load separately connected to earth, there is no connection between earth and neutral too. there is TN-C where common cable is used for earth and neutral, TN-S separate neutral and earth but same as source's earth, TN-C-S there is common point for earth and neutral but they both have cables.

Earthing Arrangements TN-C-S, TN-S and TT Identified and Explained

What does TNS mean in electrical?

The T signifies Terre or Earth, and the N is Neutral. S stands for Separate. The Neutral and Earth wires are separate throughout the supply cable. The most common arrangement is a two core cable (Live and Neutral) with a lead outer sheath (Earth).

What are the 3 earthing systems?

There are three types of earthing, they are:

  • Pipe earthing.
  • Plate earthing.
  • Strip earthing.

What is TN network?

TN networks save the cost of a low-impedance earth connection at the site of each consumer. Such a connection (a buried metal structure) is required to provide protective earth in IT and TT systems. TN-C networks save the cost of an additional conductor needed for separate N and PE connections.

Where are TT systems used?

T-T systems are often found in remote locations such as rural villages, caravan sites and temporary supplies from generators in applications such as fair grounds.

What are the 5 earthing systems?

BS 7671 lists five types of earthing system: TN-S, TN-C-S, TT, TN-C, and IT. T = Earth (from the French word Terre) N = Neutral S = Separate C = Combined I = Isolated (The source of an IT system is either connected to earth through a deliberately introduced earthing impedance or is isolated from Earth.

What is TNS earthing system used for?

The TNS earthing system is safe and reliable, suitable for low voltage power supply systems such as industrial and civil buildings. This system must be used before the construction works begin. The TNS system may be used even with flexible conductors and small conduits.

Does a TT system need an RCD?

In a typical splitboard consumer unit for TT system, the socket-outlet circuits are protected by a downstream 30 mA RCD, which is required by Regulation 471-08-06 (this regulation should be studied for the full requirements). The other circuits are protected by an upstream time-delay (S type) 100 mA RCD.

Why is earth and neutral connected?

Neutral is a circuit conductor that normally carries current, and is connected to ground (earth) at the main electrical panel. The connection between neutral and earth allows any phase-to-earth fault to develop enough current flow to "trip" the circuit overcurrent protection device.

What is TNS and TNC?

The differences between the TNS and TNCS earthing system

The major difference between these two methods of earthing is that you have a separate earth core back to the substation in a TNS whereas in a TNCS the earth and neutral are the same core (CNE).

Which type of earthing is best?

The pipe earthing is better than another type of earthing, because it can earth more leakage current, and the possibility of braking in the earth wire is minimum.

What is a PME system?

The 'PME' in PME supply stands for protective multiple earthing. It means that the neutral conductor is deliberately connected to earth at a number of points on the supply network. If you think of a simple network this would consist of a supply transformer, a radial distribution main and service lines to each customer.

What is a TT supply?

This type is the easiest to identify. There is no earth connection to the supply network at all. The earth connection is the responsibility of the property owner, and is normally provided by a metal earth rod in the ground. The two T's signify Terre, or Earth.

Does neutral wire carry voltage?

Voltage is carried by the live conductor, but a neutral conductor is also necessary for two important functions: Serving as a zero voltage reference point.

Does neutral wire have power?

To summarize: the hot wire carries electricity from the power supply and takes it to the load (lightbulb). Neutral wires take the used electricity from the load and bring it back to the power supply.

Can the neutral wire shock you?

If you touch the neutral wire in a live circuit, whether it be a lamp, an appliance or something else, it is the same as touching the active wire. It is only "safe" to touch the neutral wire when there is no current flowing, just as it is "safe" to touch the earth wire (when one exists). That is, "safe" is relative.

What are 100mA RCD used for?

'High sensitivity' RCDs, rated 30mA or even 10mA, are designed to disconnect the supply within 40ms at 150mA and within 300ms at rated tripping current to protect the user. 'Medium sensitivity' devices, rated 100mA or more will provide protection against fire risks but will not provide full personal protection.

What's more sensitive 30mA or 100mA?

Yes, 30mA is safer than 100mA. 10mA, the lowest standard size, is safer still. The actual device used depends on what is being protected, what it's being protected against and the regulations applying to the location where it's being used (both in terms of country, state etc.

Can I use RCBO on TT system?

1 says that ALL conductors must be isolated when using an RCD (outside of the TN-S and TN-C-S exceptions), but most commonly available RCBOs only break the line connection. How is that circle squared? A simple answer is 'don't use RCBOs in a TT installation', but RCBOs are really useful.

What are the two type of earthing?

Low-resistance earthing. High-resistance earthing.

Why GI pipe is used in earthing?

G.I. Pipe Earthing: For earthing house wiring, factory wiring (specially electrical installations of big factories), neutral wire of the supply line etc., galvanized iron pipe is generally used as earth electrode. The size of the pipe depends upon fault current and the condition of the soil.
